Product Description:

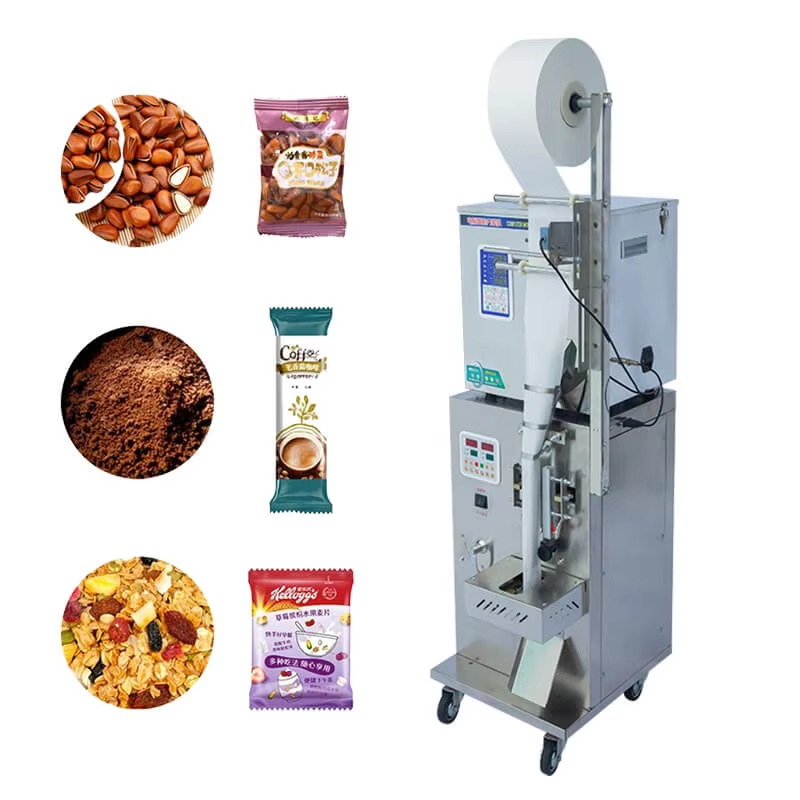

An automatic packaging machine is a fully automated system that forms bags from a film roll, fills them with a precise amount of product, and seals them – all without manual intervention. It is ideal for dry powders (milk powder, protein powder, flour, coffee) and granules (sugar, rice, seeds, plastic pellets, fertilizer).
Key features
-

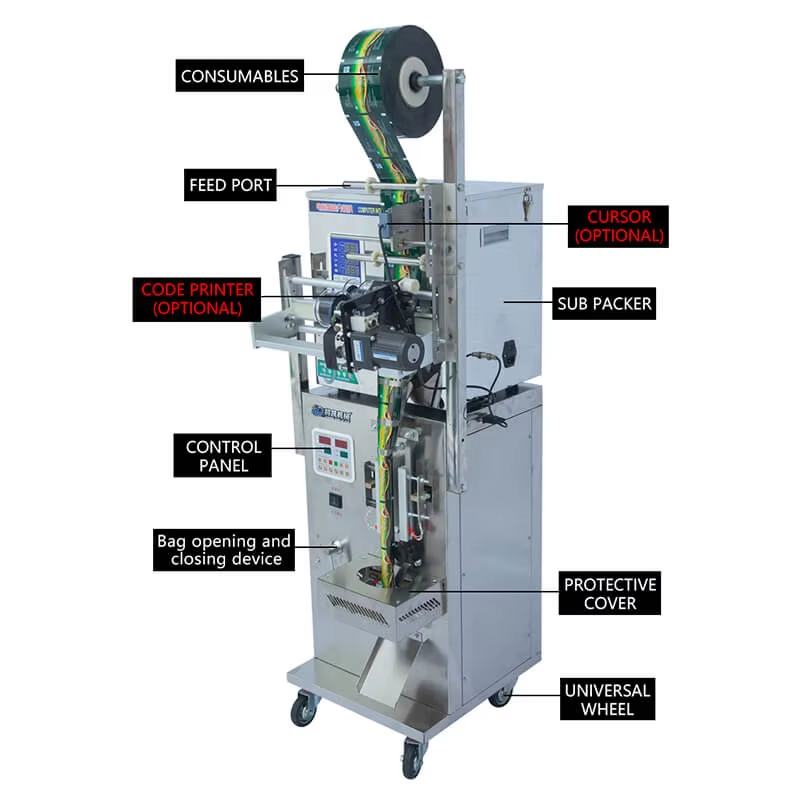

Vertical form fill seal (VFFS) – uses standard film rolls, low cost per bag.
-

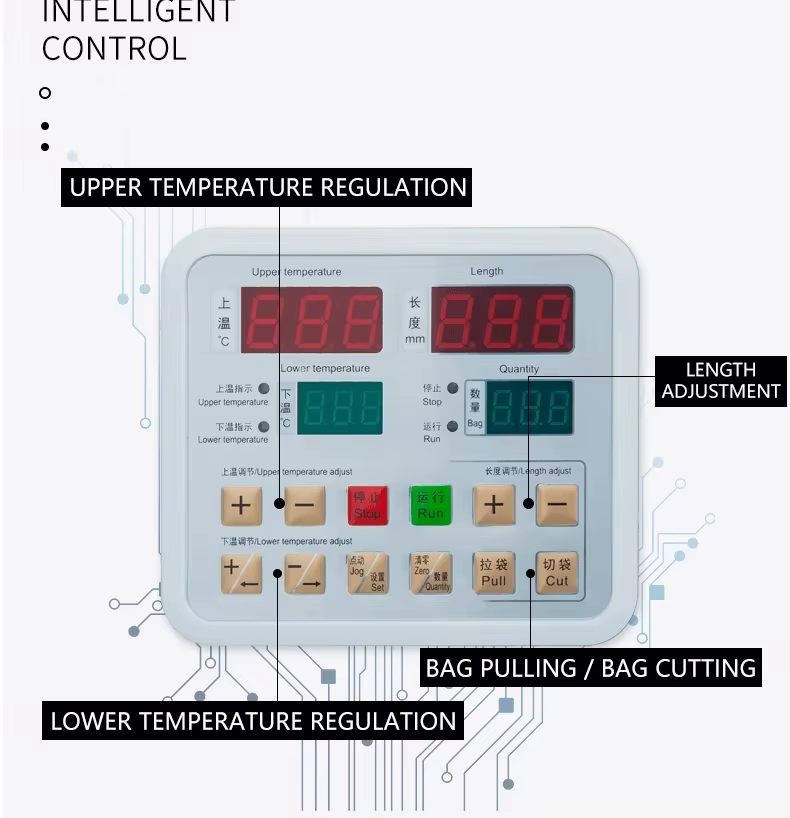

Touch screen control – easy operation, recipe storage.
-

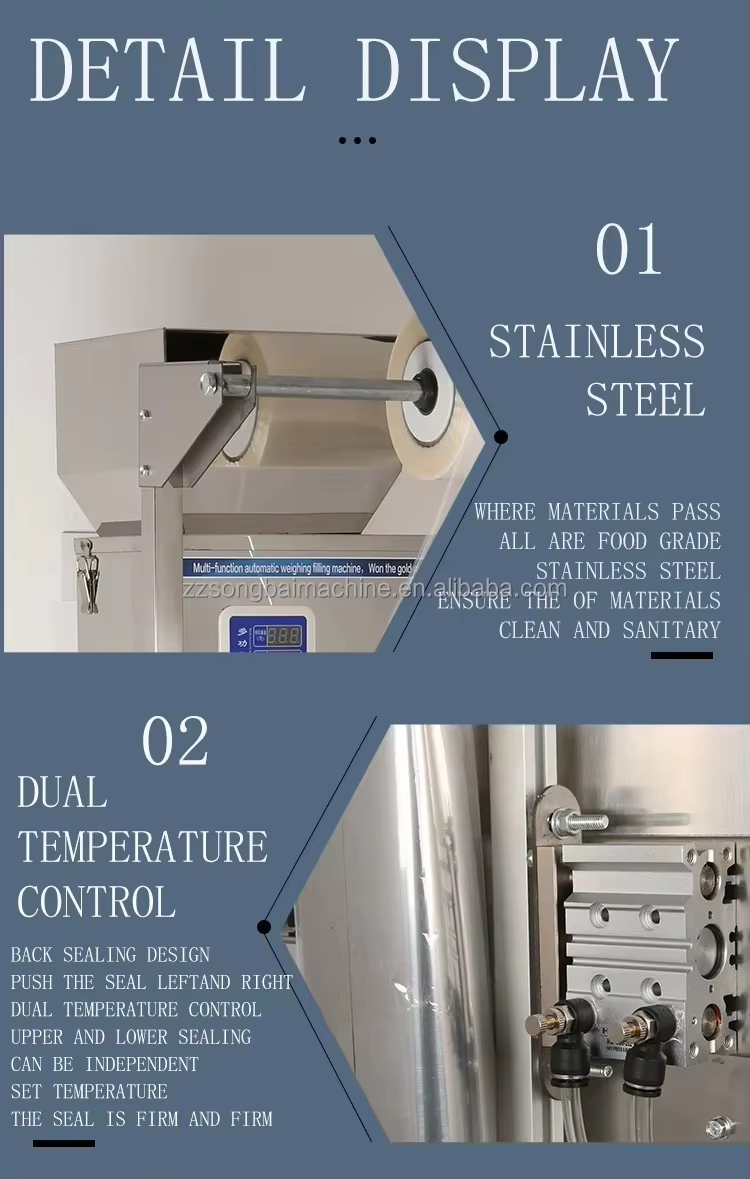

Stainless steel construction – food grade, corrosion resistant.
-

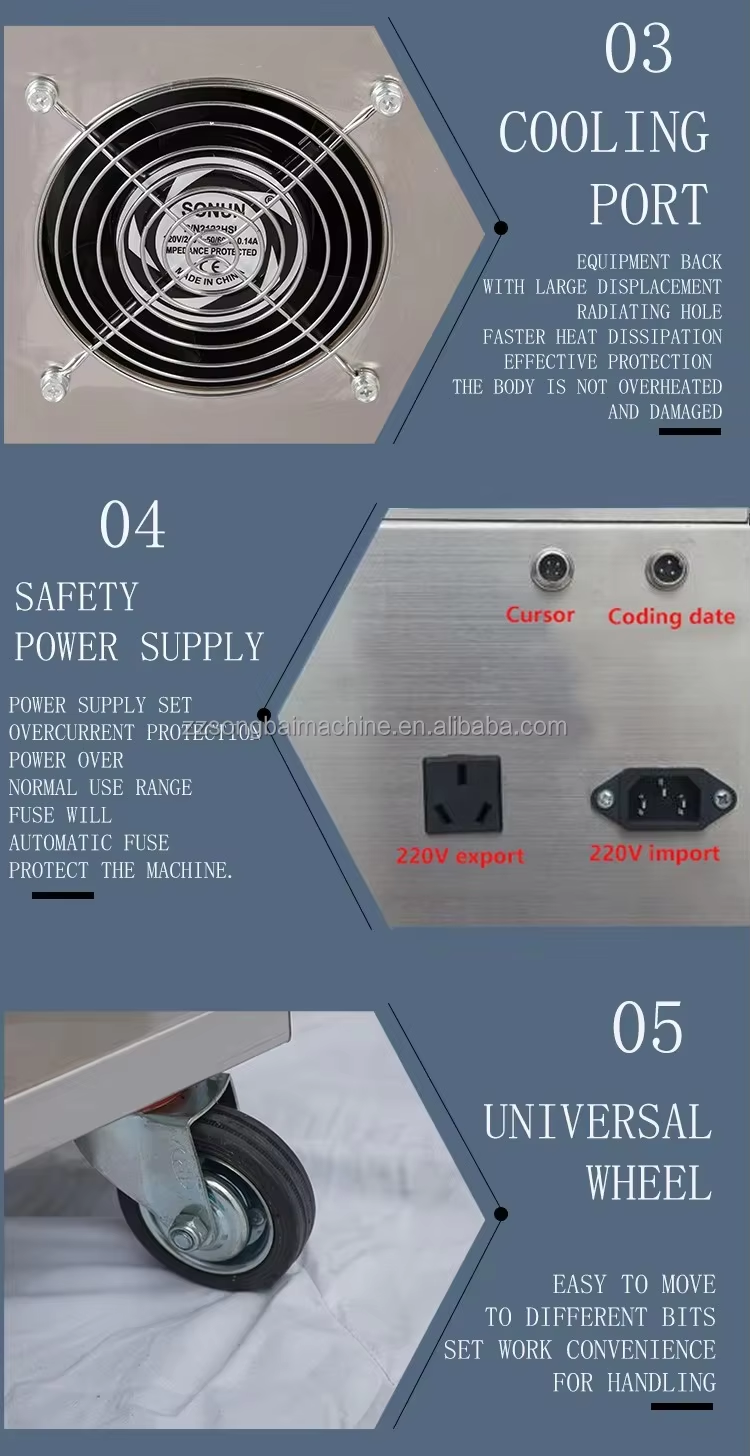

Universal wheels – mobile, easy to reposition.
-
Protective cover – safe operation.
-
High speed – up to 60 bags per minute.
-
Wide bag size range – bag length 50–400mm, width 30–200mm.
-
Filling range – from 1 gram to 5 kg per bag (larger models up to 25 kg).

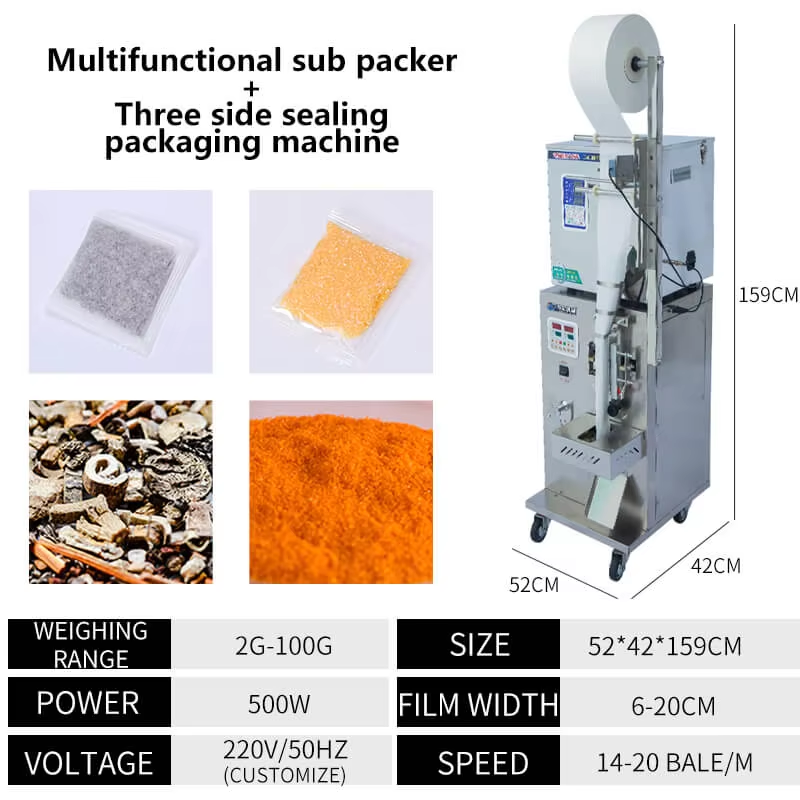

Technical specifications (typical model)
| Parameter | Value |
|---|---|
| Bag type | Pillow bag, gusseted bag, stand‑up pouch |
| Bag length | 50 – 400 mm |
| Bag width | 30 – 200 mm |
| Filling range | 1 – 5000 g |
| Speed | 10 – 60 bags/min |
| Film width | 100 – 420 mm |
| Power | 220V / 380V, 1.5 – 3 kW |
| Air pressure | 0.6 – 0.8 MPa |
Common applications
| Industry | Products |
|---|---|
| Food | Milk powder, flour, sugar, salt, rice, coffee, spices, snacks, nuts, seeds |
| Chemical | Detergent powder, plastic granules, fertilizer, lime powder |
| Agricultural | Seeds, grains, animal feed pellets |
| Pharmaceutical | Powdered medicines (with special hygiene design) |
Why choose automatic?
-
Saves labor – one operator can run the machine while doing other tasks.
-
Consistent weight & seal – reduces giveaways and customer complaints.
-
Fast changeover – change bag size and product in minutes.
-
Hygienic – stainless steel contact parts, easy to clean.
-
Low maintenance – robust design, few wearing parts.
How to choose the right automatic packaging machine
-
Product type – powder (auger filler) or free‑flowing granules (cup filler or multi‑head weigher).
-
Bag size & weight – small sachets (1–50g) or large bags (5–25kg).
-
Speed requirement – home/small business: 10–20 bags/min; factory: 40–60+ bags/min.
-
Optional features – coder, subpacker, cursor, bag opening device, gas flushing (for oxygen‑sensitive products).
-
Floor space – vertical machines are compact; consider wheels for mobility.
Installation & operating conditions
-
Flat, solid floor.
-
Power supply (single phase or three phase, as per model).
-
Compressed air (0.6–0.8 MPa) for sealing jaws and bag opening cylinders.
-
Ambient temperature 0–40°C, humidity under 85%.
Maintenance tips
-
Clean the feed hopper and filling tube after each shift (especially with powders).
-
Check sealing jaws daily – remove any melted film residue.
-
Lubricate bearings and moving parts monthly.
-
Replace heating elements and sealing tape when seal quality drops.
-
Keep the touch screen dry and clean.
Typical production line integration
An automatic packaging machine can work alone or be integrated into a complete line:
-
Filling system – auger filler, cup filler, multi‑head weigher.
-
Product feeding – bucket elevator or screw conveyor.
-
Inkjet coder – prints date, batch, barcode.
-
Subpacker – groups multiple small bags into a larger bag.
-
Check weigher – verifies bag weight.
-
Case packer & palletizer – for end‑of‑line automation.
Why buy from us?
-
10+ years experience in packaging machinery.
-
CE certified, stainless steel construction.
-
Free bag‑making drawing and recipe setup.
-
12‑month warranty and lifetime technical support.
-
Spare parts in stock (heating elements, sealing tape, cutters, etc.).
An automatic packaging machine increases efficiency, reduces waste, and gives you professional bagged products. Whether you run a small workshop or a large factory, we have a model that fits your needs.
