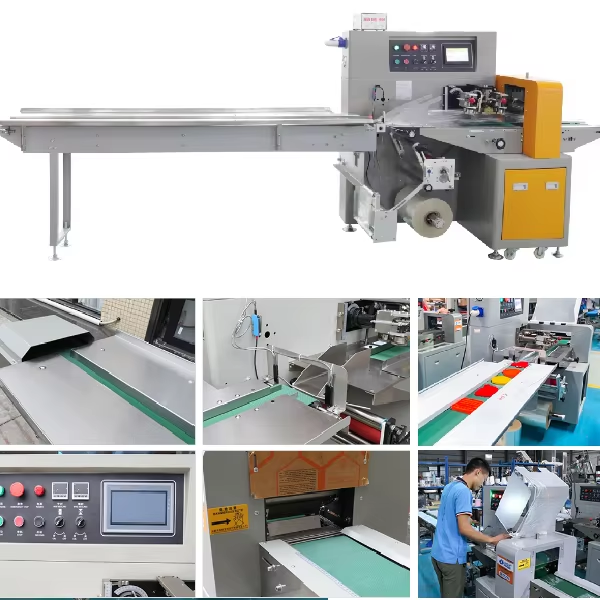

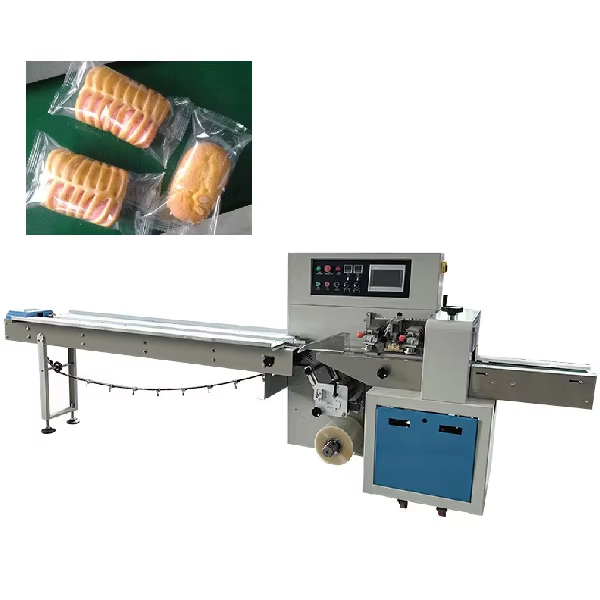

Automatic Pillow Packaging Machine

Product Description:

An automatic pillow packaging machine (also called a flow wrap machine or horizontal form fill seal machine) is a fully automated system that forms a pillow‑shaped bag around a product, fills it (if needed), and seals it – all without operator intervention. It is ideal for high‑volume packaging of solid, dry products such as food, snacks, biscuits, candy, bread, chocolate, soap, hardware parts, and medical supplies.

Key features of automatic models

• Full automation – no manual bag forming or sealing. One operator can run 2–3 machines.

• High speed – typical speed: 40–250 bags per minute (some models reach 300+ bpm).

• Servo drive – for precise bag length control and quick size changeover.

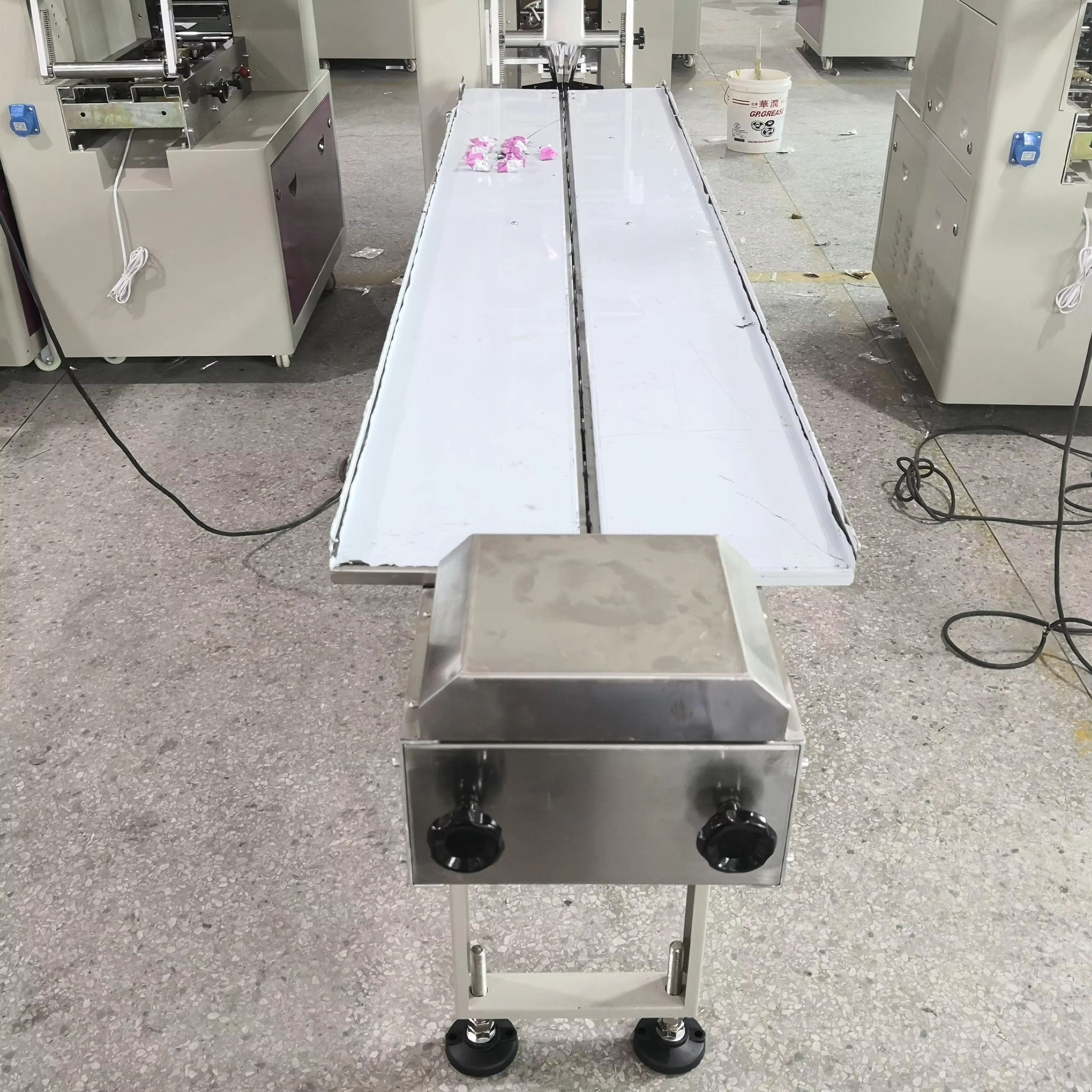

• Product feeding options – can be integrated with multi‑head weighers, auger fillers, counting systems, or robot pick‑and‑place.

• Quick changeover – change product size in 5–15 minutes; store up to 50 recipes.

• Film saving – automatic tracking of printed marks reduces waste.

• Optional devices – date coder (hot stamp or inkjet), gas flushing (modified atmosphere packaging), hole punch (euroslot), tear notch, glue sealing for cold‑seal film.

Technical specifications (typical fully automatic model)

Typical automatic applications

Why choose an automatic machine?

• Labor saving – one machine replaces 3–5 manual packers.

• Consistent quality – every bag has the same seal strength, length, and appearance.

• 24/7 operation – can run continuously with minimal breaks for film roll change.

• Film savings – automatic registration cuts exactly at the printed mark, reducing waste by 5–10%.

• Fast ROI – typical payback period is 6–12 months for medium‑volume producers.

How to choose the right automatic pillow packaging machine

1. Product shape – regular shapes (biscuits, soap) use standard infeed; irregular or small items need special feeding (e.g., counting disc or robot).

2. Speed requirement – small workshop: 30–80 bpm; factory: 150–300 bpm.

3. Sealing type – rotary end seal for high speed, flat products; reciprocating end seal for tall or soft products (bread, cakes).

4. Film material – heat seal (polyethylene, polypropylene) or cold seal (chocolate).

5. Integration – does the machine need to connect to a weigher, filler, or upstream conveyor?

6. Budget – entry‑level automatic machines start ~$5,000–8,000; high‑speed servo models $12,000–30,000.

Installation & operating requirements

• Flat, level floor (no special foundation needed).

• Power: 220V or 380V, single or three phase (depends on model). No compressed air required for most electric‑driven models.

• Ambient temperature: 0–40°C, humidity <85%.

• Film roll core size: 75 mm (standard) or 1 inch.

Maintenance schedule

• Daily – clean sealing jaws and cutters; check film tension.

• Weekly – inspect heating elements and thermocouples; clean photo‑eye lens.

• Monthly – lubricate chains and bearings; check drive belts.

• Every 6 months – replace worn sealing tape and cutters; check all electrical connections.

Why buy from us?

• CE and ISO certified – meets international safety and quality standards.

• Stainless steel construction – suitable for food and pharmaceutical use.

• Ready stock of spare parts – heating elements, sealing tapes, cutters, belts, motors.

• Free sample testing – send your product and film, get a video of the machine running.

• 12 months warranty and lifetime remote technical support.

An automatic pillow packaging machine is the most efficient way to package solid products into pillow bags. It eliminates manual labour, ensures consistent bag quality, and pays for itself quickly. Whether you pack biscuits, candy, bread, or hardware, we have a model that fits your speed and budget.
