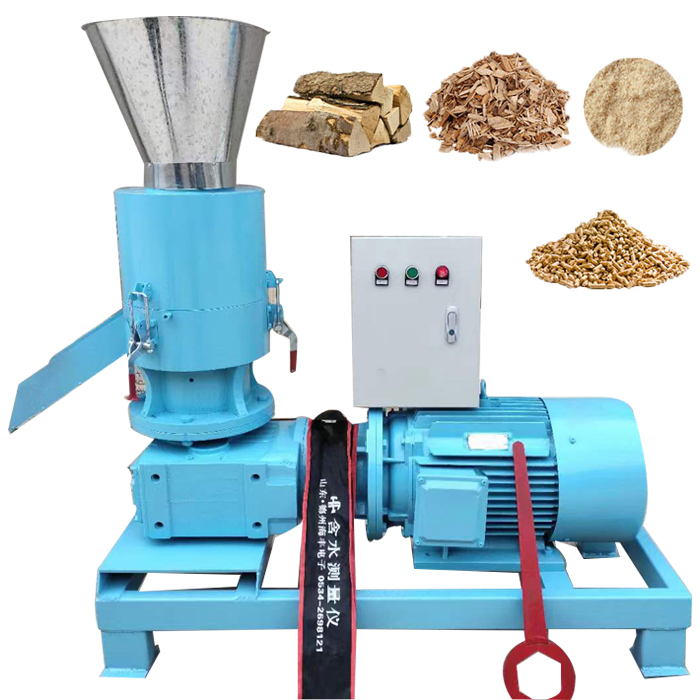

Biomass Pellet Machine

Product Description

A biomass pellet machine is a versatile compressing equipment designed to convert various organic materials – including wood chips, sawdust, straw, rice husk, peanut shells, and other agricultural residues – into dense, uniform fuel pellets. Using a flat die compression system, the machine presses raw biomass under high pressure through die holes, producing cylindrical pellets that offer consistent size, high density, and excellent combustion properties. Available in both electric and diesel-powered models, biomass pellet machines provide a sustainable and cost-effective solution for turning agricultural and forestry waste into renewable energy, reducing waste disposal costs while creating valuable fuel for heating, cooking, boilers, and industrial applications.

Key Features

• Flat die compression technology – high-pressure rollers force biomass through die holes, producing dense, uniform pellets with excellent durability and low breakage rate.

• Electric motor / diesel engine options – choose electric for quiet, clean indoor operation; diesel for mobility and off-grid use.

• High-quality alloy die – heat-treated and wear-resistant, ensuring consistent pellet quality and long service life.

• Adjustable roller gap – allows fine-tuning for different raw materials to achieve optimal pellet density and output.

• Overload protection system – prevents damage to motor/engine and mechanical components from excessive feed.

• Heavy-duty steel frame – robust construction ensures stability and long-term reliability under continuous operation.

• Quick-change die system – enables fast switching between different pellet diameters (6mm, 8mm, 10mm) for varied applications.

• User-friendly control panel – simple operation with clear indicators for power, temperature, and overload status.

• Portable options – wheeled or trailer-mounted models available for easy transport between job sites.

What Materials Can Be Processed?

Note: For optimal pellet quality, material moisture content should be between 12-20%. Oversized materials require pre-grinding to 3-5mm particle size.

Common Applications

• Residential heating – produce pellets for pellet stoves, fireplace inserts, and home heating systems.

• Agricultural operations – create fuel for crop drying, greenhouse heating, and livestock barn warming.

• Commercial pellet production – small to medium-scale manufacturing for local fuel distribution.

• Industrial energy – supply biomass fuel for industrial boilers, kilns, and power generation plants.

• Waste-to-energy projects – convert agricultural and forestry waste into valuable renewable fuel.

• Export & wholesale – produce standardized pellets meeting international quality standards.

Why Choose a Biomass Pellet Machine?

• Waste utilization – turns low-value agricultural and forestry waste into high-value fuel pellets.

• Environmentally friendly – biomass pellets are carbon-neutral and produce significantly lower emissions than fossil fuels.

• Cost savings – eliminates waste disposal fees and reduces heating fuel expenses.

• High energy density – pellets provide consistent heat output with low moisture and ash content.

• Versatile material handling – processes a wide variety of biomass materials with simple adjustments.

• Simple operation – user-friendly design requires minimal training to operate.

• Low maintenance – flat die design with few wearing parts reduces downtime and service costs.

• Energy independence – produce your own fuel on-site, reducing dependence on external energy suppliers.

How to Choose the Right Biomass Pellet Machine

1. Power source – electric for fixed indoor installations; diesel for remote, outdoor, or mobile operations.

2. Capacity – determine required hourly output (kg/h) based on your production volume needs.

3. Raw material type – confirm the machine is compatible with your specific biomass materials.

4. Moisture content – most flat die machines require 12-20% moisture; consider pre-drying if your material is wetter.

5. Particle size – materials need to be ground to 3-5mm; pre-grinding equipment may be needed.

6. Pellet size – select die hole diameter based on your target pellet size (6mm, 8mm, or 10mm).

7. Portability – stationary models for fixed sites; wheeled/trailer models for multiple locations.

8. Power voltage – verify electric motor voltage compatibility (110V/220V/380V) with your facility.

9. After-sales support – choose a supplier with good spare parts availability and technical service.

Maintenance Tips

• Clean the die after each use – remove residual material to prevent blockage and maintain pellet quality.

• Inspect rollers regularly – check for wear on roller shells; replace when surface becomes uneven or worn.

• Lubricate bearings and gearbox – follow the manual for recommended lubrication schedule and grease type.

• Check belt tension – ensure drive belts are properly tensioned; replace if frayed or cracked.

• Monitor material moisture – inconsistent moisture affects pellet quality and can cause die blockage.

• Tighten fasteners – check bolts and nuts regularly as vibration can loosen them.

• Inspect electrical system (electric models) – check wires, plugs, and connections for damage.

• Service diesel engine regularly (diesel models) – change oil, fuel filter, and air filter per engine manufacturer schedule.

• Store in a dry location – protect from moisture to prevent rust and corrosion.

Safety Guidelines

• Wear protective equipment – safety glasses, dust mask, hearing protection, and gloves are required.

• Never reach into feed hopper – keep hands away from the feed opening while the machine is running.

• Keep work area clear – ensure bystanders, children, and pets stay at a safe distance.

• Inspect feed materials – remove stones, metal pieces, and other foreign objects to prevent machine damage.

• Do not overload – feeding too much material can damage rollers, die, and the motor/engine.

• Shut off before servicing – always disconnect power and wait for all moving parts to stop before cleaning or maintenance.

• Operate on level ground – stable placement prevents tipping and ensures smooth operation.

• Ensure ventilation – operate in well-ventilated areas, especially with diesel models, to prevent fume buildup.

• Read the manual – understand all controls and safety features before first use.
