Product Description:
This flat die wood pellet machine turns sawdust, wood chips, and other biomass waste into solid wood pellets. The flat die design is simple and reliable, perfect for small scale production.
What you can make:
-
Wood pellets for home heating and stoves
-
Pellets for BBQ and grilling
-
Animal bedding pellets

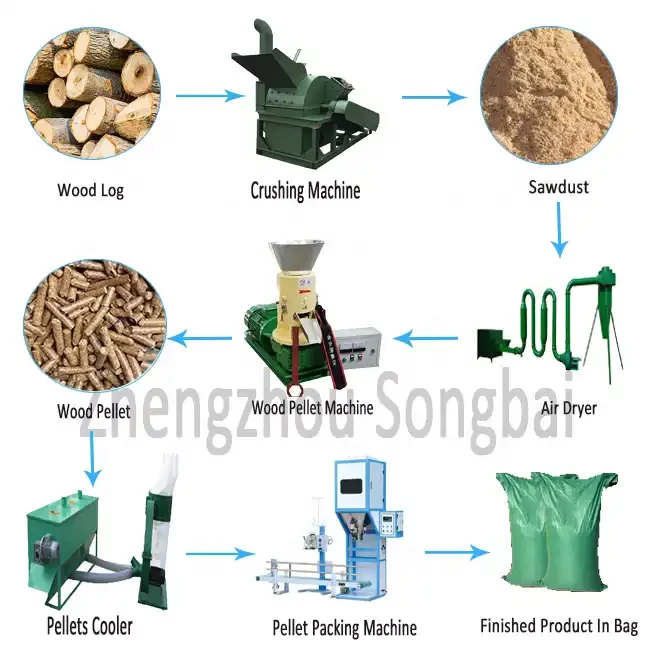

How it works:
Feed dry sawdust or wood chips into the hopper. The rotating flat die and rollers press the material into hard pellets. Pellets come out ready to use.
Why choose flat die:
-
Compact size – fits in a garage or workshop
-
Easy to operate – no complex setup
-
Lower cost than industrial ring die machines
Perfect for home use, small farms, or starting a wood pellet business.
| Model | Capacity (kg/h) |
Power (kw)
|
Pellet Diameter (mm)
|
Weight(kg) |
Machine Size (mm)
|
| PM-S-200 | 100-150 | 7.5 | 3-12mm | 230 | 1000*450*850 |
| PM-S-250 | 200-250 | 15 | 3-12mm | 350 | 1200*550*1050 |
| PM-S-300 | 250-350 | 22 | 3-12mm | 450 | 1250*600*1100 |
| PM-S-400 | 400-500 | 30 | 3-12mm | 780 | 1400*600*1200 |
| PM-S-500 | 700-800 | 55 | 3-12mm | 1300 | 1700*750*1450 |
| PM-S-500 | 1200-1300 | 90 | 3-12mm | 1800 | 2100*900*1650 |
| PM-S-700 | 1700-1800 | 132 | 3-12mm | 2300 | 2400*1050*1870 |
