Product Description:
A full automatic feed production line is a complete, fully automated system that processes powdered raw materials into finished animal feed pellets with minimal manual intervention. Controlled by an automatic PLC control system, the entire line operates continuously from raw material input to finished product output.
What It Produces
| Feed Type | Target Animals |
|---|---|
| Poultry feed | Chickens, ducks, turkeys, pigeons |
| Pig feed | Piglets, growers, sows |
| Cattle feed | Dairy cows, beef cattle |
| Fish & shrimp feed | Tilapia, catfish, shrimp |
| Sheep & goat feed | Lambs, adults |

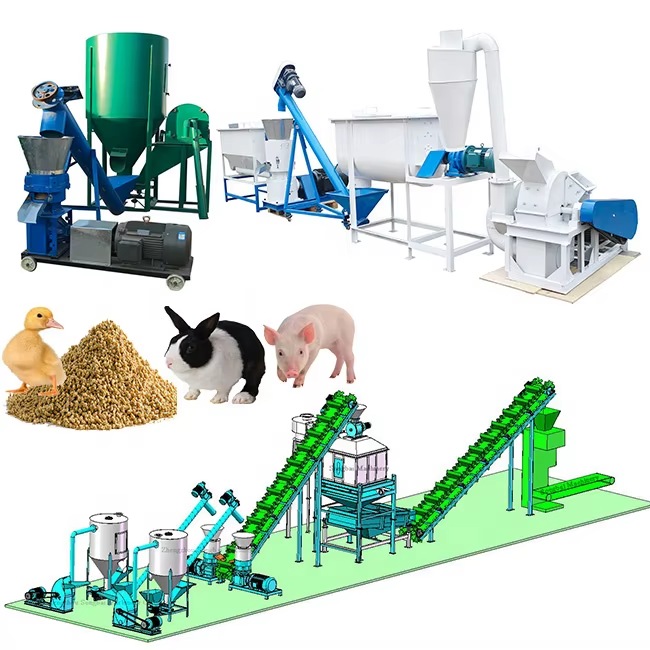

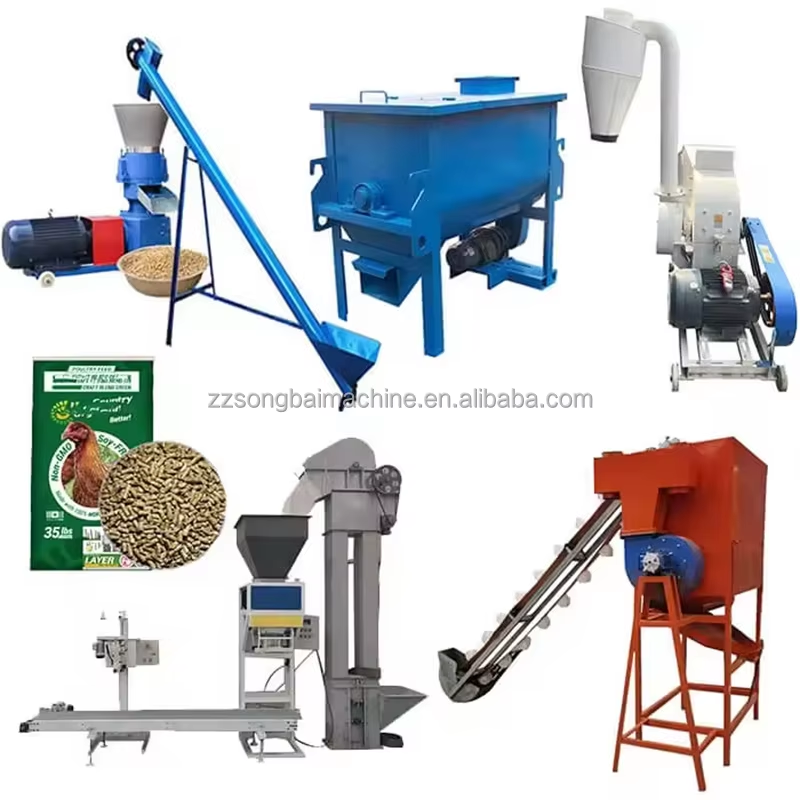

Production Line Process Flow
The complete line typically includes these stages:
| Stage | Equipment | Function |
|---|---|---|
| 1. Raw material receiving | Cleaning system | Removes impurities from raw materials |
| 2. Grinding | Hammer mill | Crushes grains into fine powder |
| 3. Batching | Batching system | Weighs ingredients by formula |
| 4. Mixing | Ribbon/paddle mixer | Blends all ingredients uniformly |
| 5. Pelleting | Ring die pellet mill | Compresses powder into hard pellets |
| 6. Cooling | Counterflow cooler | Reduces pellet temperature & moisture |
| 7. Crumbling (optional) | Crumblers | Breaks large pellets into smaller sizes |
| 8. Screening | Vibrating screener | Removes fines and broken pellets |
| 9. Packaging | Packing scale + sealer | Bags finished pellets |
Key Features
-
Full automation – PLC control system manages the entire production process
-
High efficiency – continuous operation with minimal labor
-
Consistent quality – uniform pellet size, hardness, and nutrition
-
Flexible output – adjustable pellet diameter (1–12mm) for different animals
-
Ring die pellet mill – high-precision gear drive, output 20% higher than belt drive
-
Turnkey solution – we design, supply, install, and train
Pellet Size Reference by Animal
| Animal | Pellet Diameter |
|---|---|
| Shrimp | ø1.0 – 3.5 mm |
| Fish | ø2.0 – 3.0 mm |
| Chicken | ø3.2 mm |
| Pig | ø3.5 – 6.5 mm |
| Cattle | ø4.5 – 8 mm |
Technical Specifications (Typical Models)
| Model | Capacity (t/h) | Main Motor Power (kW) |
|---|---|---|
| SZLH250 | 1 – 2 | 22 |
| SZLH320 | 2 – 5 | 37 |
| SZLH350 | 1.5 – 8 | 55 |
| SZLH400 | 2 – 10 | 75/90 |
| SZLH420 | 3 – 12 | 110 |
| SZLH508 | 4 – 20 | 132/160 |
Raw Materials
The line processes a wide range of raw materials including corn, brown rice, paddy, sorghum, soybean meal, and other grains and protein meals.
Why Choose a Full Automatic Feed Production Line?
-
Lower feed cost – produce your own feed at significantly lower cost than buying commercial pellets
-
Quality control – exactly control what goes into your feed
-
Consistent nutrition – pellets ensure animals get balanced nutrients
-
Convenient storage – pellets take less space than powder and do not cake
-
Less waste – pellets reduce feed spillage and selective feeding
-
Scalable – start with a smaller line and expand as your business grows
Why Buy from Us?
-
Over 15 years of experience in feed machinery
-
CE and ISO certified quality assurance
-
Turnkey solutions – we design, supply, install, and train
-
Factory-direct pricing, no middleman
-
Spare parts available at all times
-
Free layout design and project consultation
A full automatic feed production line is the ultimate solution for high-volume, high-quality animal feed production. Whether you need a 1 t/h line for a small feed mill or a 20 t/h line for a large commercial plant, we provide reliable equipment, professional support, and long-term value.
